We are the leading Rental Material supplier since 2006 and we assure best quality standards as per industry norms. Below is list of materials that we provide on rental basis:

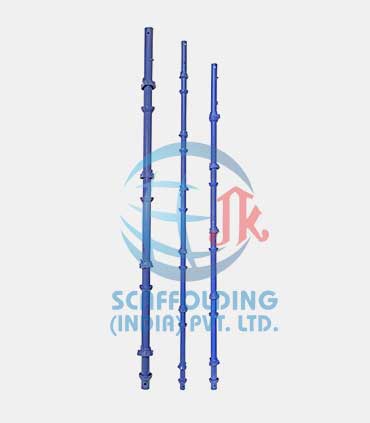

Standards (Vertical) : 3 mtr 6 Cup, 2.5 mtr 5 cup, 2 mtr 4 Cup, 1.5 mtr 3 cup, 1 mtr 2 cup |
Ledger (Horizontal) : 1.8 mtr , 1.5 mtr, 1.2 mtr, 1 mtr |
Rigid construction |
Low maintenance cost |
Excellent performance |

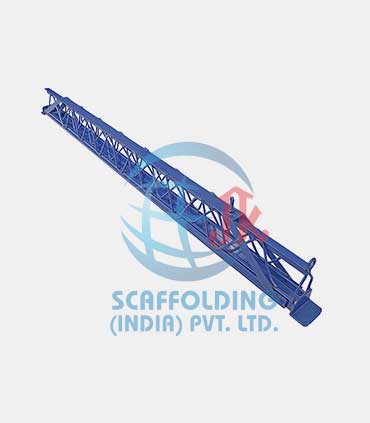

Main body of the outer & inner members are made up of 14/12 gauge M.S. sheet |
Bottom of the outer member is made up of 50x6 mm M.S. plate |
Bottom of the inner member is produced using 40x40x6 mm 'T' angle |
Lattice is made of 10 mm dia. M.S. round bar |
Bearing angle are of 75x75x8 mm size |
Sizes | Min | Max | Self weight in kg |
---|---|---|---|
ESO+ESI | 1750 | 2600 | 26.00 |
So+si | 2400 | 4100 | 39.00 |
So+li | 3050 | 4650 | 46.00 |
Lo+li | 3150 | 5200 | 52.00 |
2.0x2.0 | 2010 | 3250 | 35.50 |
2.0x2.5 | 2510 | 3850 | 40.00 |
2.5x2.5 | 2510 | 4250 | 44.00 |
Note:weights indicated above are subject to tolerance of +/-3.0 %
Highly efficient |
Efficient working |
Highly demanded |

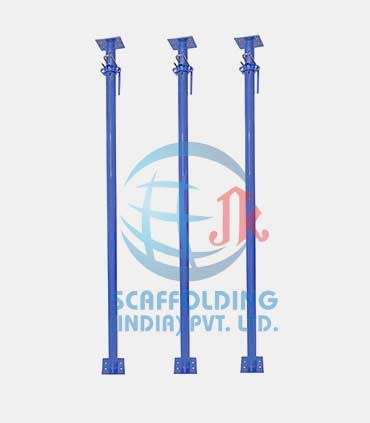

Manufactured using Steel Tubes conforming to IS 1239/1161 YST 210 Standard |
Outer tube 50NB (60.3 mm OD) medium class |
Inner tube 40NB (48.3 mm OD) medium class |
Size | Minimum height | Maximum height | Weight (approx) |
---|---|---|---|
1 | 2.00 m | 3.75 m | 17.50 kg |
2 | 3.00 m | 4.80 m | 21.50 kg |

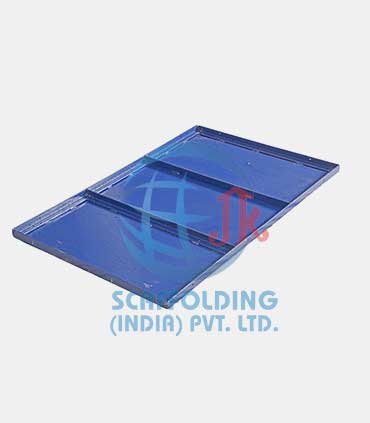

Angled welded sheets 14 gauge with angle 25x25x5mm plug welded. |
Perfect Corner rigidity |
Easy Handling |
High durability |
Competitive prices |
Superlative performance |
High performance |
Best grade materials |
Most reasonable prices |

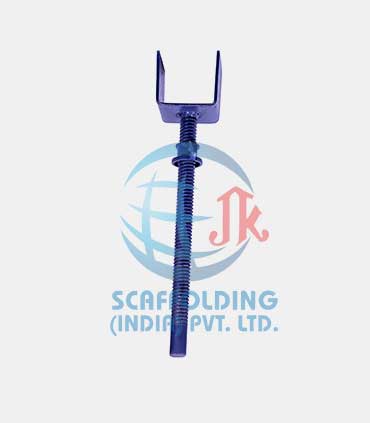

Description | Weight |
---|---|
U-Head 450mm 30 Dia Solid Rod U-Dimension:100*100*6mm | 3.7 KG |
U-Head 450mm 32 Dia Solid Rod U-Dimension:100*100*6mm | 4.0 KG |
High work capacity |
Power efficiency |
Completely tested |

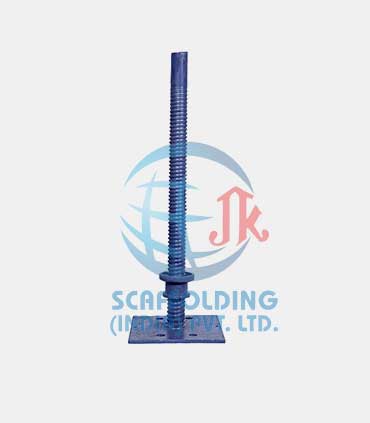

Description | Weight |
---|---|
Based Jack 450mm 30 Dia Solid Rod Flat Size :150*150*6mm | 3.5 KG |
Based Jack 450mm 32 Dia Solid Rod Flat Size : 150*150*6mm | 3.7 KG |
Based Jack 450mm 34 Dia Solid Rod Flat Size : 150*150*6mm | 4.5 KG |
